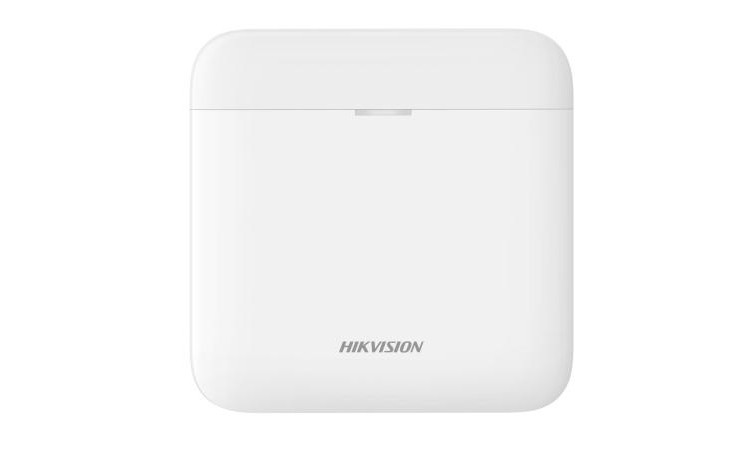

Centrale AX PRO 2G (868MHz) | Antifurto casa | Nebbiogeno antifurto wifi | Miglior antifurto perimetrale esterno | Artelettric Shop

• 64 zone / 16 Aree
• Protocollo Tri-X, Cam-X
• Portata Wireless: fino a 2000m
• TCP/IP, Wi-Fi e GPRS

  ---

• TCP/IP, Wi-Fi, and GPRS network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
• Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
• Add to Favorites

Software features

• Diagnostics via the APP or Web    Supported
• Installatore    1
• Installer APP for programming    Supported
• Web server for maintenance (offline configuration)    Supported
• Wi-Fi standard    Supported
• Arm modes    Away/Stay
• Firmware upgrade    APP/Web Portal
• Admin    1
• Wired network    Supported
• Programming tools    Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Forced arming with open zones    Supported
• Memory log stored    5000
• User    30
• User APP for operating    Supported
• Voice prompt    Supported
• Area    16
• Automatic arm/disarm timers    Supported

Hardware features

• RS232 output    Supported
• SIM slot    Single
• GPRS on board    Supported
• Loudspeaker built in    Supported

Electrical characteristics

• Battery type    Built in on board Battery Li
• Power supply    Built in power supply
• Operation temperature    -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
• Battery life span    Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

• RF frequency    868 Mhz
• Wireless security    Frequency Hoping 128 AES Encryption

Display

• LEDs status    Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Dimension(WxHxD)    170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
• Shell material    Plastic
• Color    White
• Weight    557.5 g (19.7 oz)

Device management

• Tag    32
• PIR cam    Supported
• Zones    64 (up to 48 PIRCAMs)
• Keypad    8 (including tag reader)
• Wireless sounder    4(2 internal+2 external)
• Wireless repeater    2
• Keyfob    32

Report method

• ARC protocol    SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
