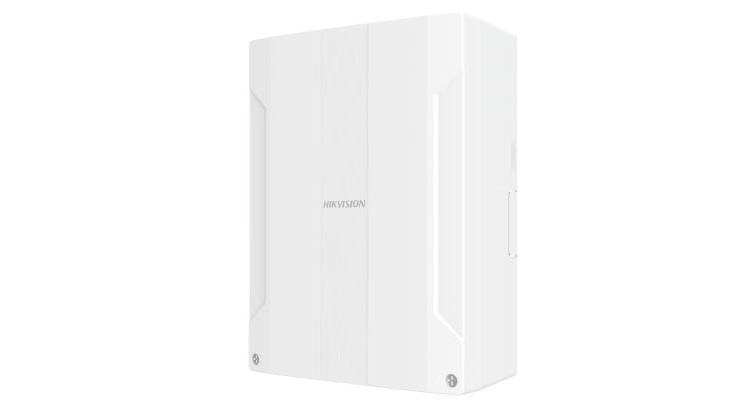

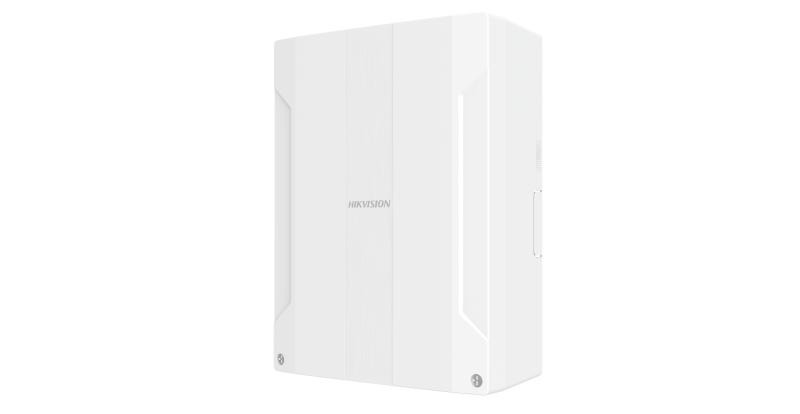

AX PRO with big battery size

HikvisionAX PRO with big battery size

Centrale 96 zone Videoverifica, Alimentatore 12Vcc/1A, Alloggiamento Batteria 7Ah Contenitore grande TCP/IP, Wi-Fi, and 3/4G network New generation wireless protocol: Tri-X/Cam-X Long RF transmission distance Two-way communication with AES

DS-PWA96-M2-WE AX PRO with big battery size

Vuoi scoprire i nostri prezzi?

Registrati gratuitamente per sbloccare il listino completo e le offerte esclusive.

Iscriviti ora o Accedi
Descrizione
Centrale 96 zone Videoverifica, Alimentatore 12Vcc/1A, Alloggiamento Batteria 7Ah Contenitore grande TCP/IP, Wi-Fi, and 3/4G network New generation wireless protocol: Tri-X/Cam-X Long RF transmission distance Two-way communication with AES
  • Centrale 96 zone
  • Videoverifica,
  • Alimentatore 12Vcc/1A,
  • Alloggiamento Batteria 7Ah
  • Contenitore grande
  • TCP/IP, Wi-Fi, and 3/4G network
  • New generation wireless protocol: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 External), 8 tag readers & keypads.
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Software features

  • Tag 48
  • Area 32
  • Zones 96 (up to 48 PIRCAMs)
  • Onboard video clips 4
  • Installatore 1
  • User 46
  • Admin 1
  • Voice Prompt Supported
  • Loudspeaker built in Supported
  • Tag reader built in No
  • Memory Log stored 5000
  • Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgrade APP/Web Portal
  • Arm modes Away/Stay
  • Automatic Arm/Disarm Timers Supported
  • Forced Arming with Open Zones Supported
  • Diagnostics via the APP or Web Supported
  • ARC protocol SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operating Supported
  • Installer APP for programming Supported
  • Web server for maintenance (offline configuration) Supported

Hardware features

  • RS232 output Supported
  • SIM slot Dual

RF transmission

  • Two-way Wireless Communication Support
  • RF Frequency 868Mhz
  • Wireless Security Frequency Hoping 128 AES Encryption
  • 3/4G on board Supported

Electrical characteristics

  • Power supply Built in power supply
  • Battery type 12v 7Ah Storage battery (Battery is not included by default)
  • Battery life span Up to 36 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)(Battery life varies from different battery types)

Wireless transmission

  • Wired network Supported
  • Wi-Fi Standard Supported

Display

  • LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

  • Operation temperature -10 °C to +55 °C
  • Shell material Plastic
  • Dimension(WxHxD) 261*199*86.4mm
  • Weight 975g (No battery)
  • Color White

Device management

  • Keyfob 48
  • Wireless sounder 6 (3 internal+3 External)
  • Keypad 8 (Including Tag reader)
  • Wireless Repeater 4
  • Multi Transmitter 6
  • PIR Cam Supported
  • Centrale 96 zone
  • Videoverifica,
  • Alimentatore 12Vcc/1A,
  • Alloggiamento Batteria 7Ah
  • Contenitore grande
  • TCP/IP, Wi-Fi, and 3/4G network
  • New generation wireless protocol: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 External), 8 tag readers & keypads.
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Software features

  • Tag 48
  • Area 32
  • Zones 96 (up to 48 PIRCAMs)
  • Onboard video clips 4
  • Installatore 1
  • User 46
  • Admin 1
  • Voice Prompt Supported
  • Loudspeaker built in Supported
  • Tag reader built in No
  • Memory Log stored 5000
  • Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgrade APP/Web Portal
  • Arm modes Away/Stay
  • Automatic Arm/Disarm Timers Supported
  • Forced Arming with Open Zones Supported
  • Diagnostics via the APP or Web Supported
  • ARC protocol SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operating Supported
  • Installer APP for programming Supported
  • Web server for maintenance (offline configuration) Supported

Hardware features

  • RS232 output Supported
  • SIM slot Dual

RF transmission

  • Two-way Wireless Communication Support
  • RF Frequency 868Mhz
  • Wireless Security Frequency Hoping 128 AES Encryption
  • 3/4G on board Supported

Electrical characteristics

  • Power supply Built in power supply
  • Battery type 12v 7Ah Storage battery (Battery is not included by default)
  • Battery life span Up to 36 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)(Battery life varies from different battery types)

Wireless transmission

  • Wired network Supported
  • Wi-Fi Standard Supported

Display

  • LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

  • Operation temperature -10 °C to +55 °C
  • Shell material Plastic
  • Dimension(WxHxD) 261*199*86.4mm
  • Weight 975g (No battery)
  • Color White

Device management

  • Keyfob 48
  • Wireless sounder 6 (3 internal+3 External)
  • Keypad 8 (Including Tag reader)
  • Wireless Repeater 4
  • Multi Transmitter 6
  • PIR Cam Supported
