Wireless Triple Signal Detector

HikvisionWireless Triple Signal Detector

Rilevatore Tripla Tecnologia 3Tech Copertura: Volumetrica / Tenda Protezione: Tamper (apertura/strappo) Portata massima: 15m Altezza di Installazione: 1-1.5m Anti-mascheramento e Antisway (ondeggio) Grado di Protezione: IP65 Pet Immunity: 12

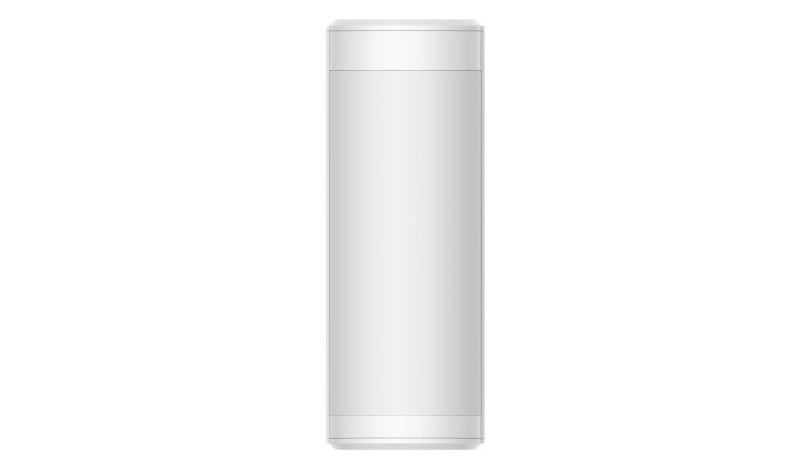

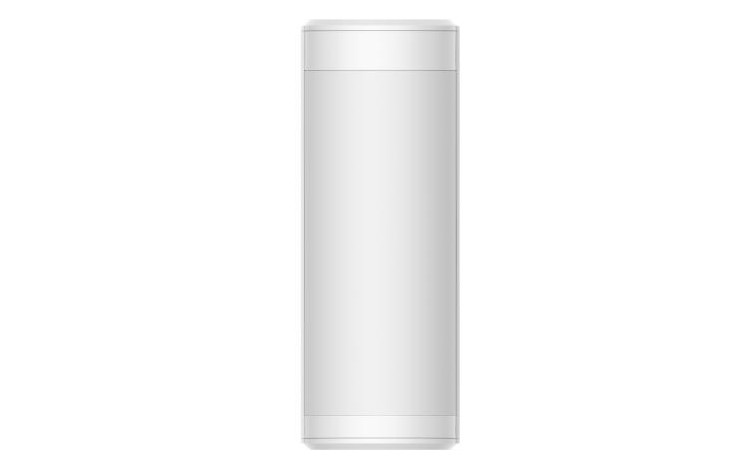

DS-PDTT15AM-LM-WE Wireless Triple Signal Detector

Vuoi scoprire i nostri prezzi?

Registrati gratuitamente per sbloccare il listino completo e le offerte esclusive.

Iscriviti ora o Accedi
Descrizione
Rilevatore Tripla Tecnologia 3Tech Copertura: Volumetrica / Tenda Protezione: Tamper (apertura/strappo) Portata massima: 15m Altezza di Installazione: 1-1.5m Anti-mascheramento e Antisway (ondeggio) Grado di Protezione: IP65 Pet Immunity: 12
  • Rilevatore Tripla Tecnologia 3Tech
  • Copertura: Volumetrica / Tenda
  • Protezione: Tamper (apertura/strappo)
  • Portata massima: 15m
  • Altezza di Installazione: 1-1.5m
  • Anti-mascheramento e Antisway (ondeggio)
  • Grado di Protezione: IP65
  • Pet Immunity: 12 Kg

  • 90°@180° adjustable coverage
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission

Detection Performance

  • Detection Method    Passive Infrared;Microwave
  • Detection Range    15 m
  • Detection Angle    90° @180° adjustable
  • Detection Zones    92
  • Detectable Speed    0.3?2m/s
  • Sensitivity    Auto;Low
  • White Light Filter    10000lux
  • Microwave Frequency    24GHz(24.15?24.25GHz)
  • Pet Immunity    40 kg
  • Digital Temperature Compensation    Support
  • Anti-masking    Support
  • Adaptable Coverage    Support, Pattern mask included

Feature

  • Digital Processing    Tri-Signal Logic
  • Sealed Optics    Support
  • Tamper Protection    Front;Rear
  • Environment Temperature Indicator    Support
  • Signal Strength Indicator    Support
  • Anti-Sway Analytics    Support

Interface

  • Power Switch    Power up enrolling
  • LED Indicator    Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)

Electrical Characteristics

  • Standard Battery Life    Up to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
  • Power Supply    Battery powered
  • Battery Type    CR123A × 5
  • Typical Voltage    3V

General

  • Operation Temperature    -25°C to 60°C (-13°F to 140°F)
  • Storage Temperature    -25°C to 60°C (-13°F to 140°F)
  • Operation Humidity    10% to 90%
  • IP Rate    IP65
  • Dimension(WxHxD)    75 mm × 202 mm × 73 mm
  • Weight    600 g
  • Mounting Height    0.8 m to 1.2 m
  • Mounting Method    Wall
  • Application Scenario    Outdoor
  • Rilevatore Tripla Tecnologia 3Tech
  • Copertura: Volumetrica / Tenda
  • Protezione: Tamper (apertura/strappo)
  • Portata massima: 15m
  • Altezza di Installazione: 1-1.5m
  • Anti-mascheramento e Antisway (ondeggio)
  • Grado di Protezione: IP65
  • Pet Immunity: 12 Kg

  • 90°@180° adjustable coverage
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission

Detection Performance

  • Detection Method    Passive Infrared;Microwave
  • Detection Range    15 m
  • Detection Angle    90° @180° adjustable
  • Detection Zones    92
  • Detectable Speed    0.3?2m/s
  • Sensitivity    Auto;Low
  • White Light Filter    10000lux
  • Microwave Frequency    24GHz(24.15?24.25GHz)
  • Pet Immunity    40 kg
  • Digital Temperature Compensation    Support
  • Anti-masking    Support
  • Adaptable Coverage    Support, Pattern mask included

Feature

  • Digital Processing    Tri-Signal Logic
  • Sealed Optics    Support
  • Tamper Protection    Front;Rear
  • Environment Temperature Indicator    Support
  • Signal Strength Indicator    Support
  • Anti-Sway Analytics    Support

Interface

  • Power Switch    Power up enrolling
  • LED Indicator    Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)

Electrical Characteristics

  • Standard Battery Life    Up to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
  • Power Supply    Battery powered
  • Battery Type    CR123A × 5
  • Typical Voltage    3V

General

  • Operation Temperature    -25°C to 60°C (-13°F to 140°F)
  • Storage Temperature    -25°C to 60°C (-13°F to 140°F)
  • Operation Humidity    10% to 90%
  • IP Rate    IP65
  • Dimension(WxHxD)    75 mm × 202 mm × 73 mm
  • Weight    600 g
  • Mounting Height    0.8 m to 1.2 m
  • Mounting Method    Wall
  • Application Scenario    Outdoor
