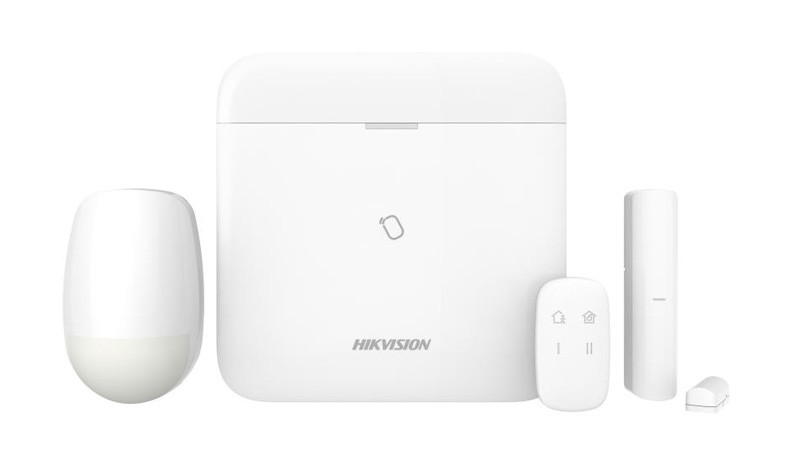

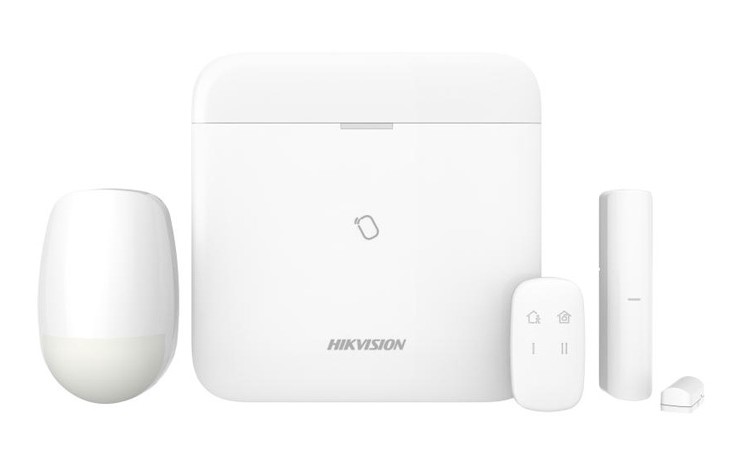

AX PRO Kit (868MHz)

HikvisionAX PRO Kit (868MHz)

Kit composto da: • Centrale 96 zone • Telecomando, • Rilevatore PIR • Contatto Magnetico • 3 Tag DS-PT-M1 DS-PWA96-M-WE x 1 DS-PKF1-WE x 1 DS-PDP15P-EG2-WE x 1 DS-PDMC-EG2-WE x 1 Software features Tag   &nbs

DS-PWA96-KIT-WE AX PRO Kit (868MHz)

Vuoi scoprire i nostri prezzi?

Registrati gratuitamente per sbloccare il listino completo e le offerte esclusive.

Iscriviti ora o Accedi
Descrizione
Kit composto da: • Centrale 96 zone • Telecomando, • Rilevatore PIR • Contatto Magnetico • 3 Tag DS-PT-M1 DS-PWA96-M-WE x 1 DS-PKF1-WE x 1 DS-PDP15P-EG2-WE x 1 DS-PDMC-EG2-WE x 1 Software features Tag   &nbs

Kit composto da:
• Centrale 96 zone
• Telecomando,
• Rilevatore PIR
• Contatto Magnetico
• 3 Tag DS-PT-M1


  • DS-PWA96-M-WE x 1
  • DS-PKF1-WE x 1
  • DS-PDP15P-EG2-WE x 1
  • DS-PDMC-EG2-WE x 1

Software features

  • Tag    48
  • Area    32
  • Zones    96 (up to 48 PIRCAMs)
  • Onboard video clips    4
  • Installatore    1
  • User    46
  • Admin    1
  • Voice Prompt    Supported
  • Loudspeaker built in    Supported
  • Tag reader built in    Supported
  • Memory Log stored    5000
  • Programming tools    Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgrade    APP/Web Portal
  • Arm modes    Away/Stay
  • Automatic Arm/Disarm Timers    Supported
  • Forced Arming with Open Zones    Supported
  • Diagnostics via the APP or Web    Supported
  • ARC protocol    SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operating    Supported
  • Installer APP for programming    Supported
  • Web server for maintenance (offline configuration)    Supported

Hardware features

  • RS232 output    Supported
  • SIM slot    Dual

RF transmission

  • Two-way Wireless Communication    Support
  • RF Frequency    868Mhz
  • Wireless Security    Frequency Hoping 128 AES Encryption
  • 3/4G on board    Supported

Electrical characteristics

  • Power supply    Built in power supply
  • Battery type    Built in on board Battery Li
  • Battery life span    Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

  • Wired network    Supported
  • Wi-Fi Standard    Supported

Display

  • LEDs Status    Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

  • Operation temperature    -10 °C to +55 °C
  • Shell material    Plastic
  • Dimension(WxHxD)    170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • Weight    557.5 g(19.7 oz)
  • Color    white

Device management

  • Keyfob    48
  • Wireless sounder    6 (3 internal+3 External)
  • Keypad    8 (Including Tag reader)
  • Wireless Repeater    4
  • Multi Transmitter    6
  • PIR Cam    Supported

Kit composto da:
• Centrale 96 zone
• Telecomando,
• Rilevatore PIR
• Contatto Magnetico
• 3 Tag DS-PT-M1


  • DS-PWA96-M-WE x 1
  • DS-PKF1-WE x 1
  • DS-PDP15P-EG2-WE x 1
  • DS-PDMC-EG2-WE x 1

Software features

  • Tag    48
  • Area    32
  • Zones    96 (up to 48 PIRCAMs)
  • Onboard video clips    4
  • Installatore    1
  • User    46
  • Admin    1
  • Voice Prompt    Supported
  • Loudspeaker built in    Supported
  • Tag reader built in    Supported
  • Memory Log stored    5000
  • Programming tools    Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Firmware upgrade    APP/Web Portal
  • Arm modes    Away/Stay
  • Automatic Arm/Disarm Timers    Supported
  • Forced Arming with Open Zones    Supported
  • Diagnostics via the APP or Web    Supported
  • ARC protocol    SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
  • User APP for operating    Supported
  • Installer APP for programming    Supported
  • Web server for maintenance (offline configuration)    Supported

Hardware features

  • RS232 output    Supported
  • SIM slot    Dual

RF transmission

  • Two-way Wireless Communication    Support
  • RF Frequency    868Mhz
  • Wireless Security    Frequency Hoping 128 AES Encryption
  • 3/4G on board    Supported

Electrical characteristics

  • Power supply    Built in power supply
  • Battery type    Built in on board Battery Li
  • Battery life span    Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

  • Wired network    Supported
  • Wi-Fi Standard    Supported

Display

  • LEDs Status    Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

  • Operation temperature    -10 °C to +55 °C
  • Shell material    Plastic
  • Dimension(WxHxD)    170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • Weight    557.5 g(19.7 oz)
  • Color    white

Device management

  • Keyfob    48
  • Wireless sounder    6 (3 internal+3 External)
  • Keypad    8 (Including Tag reader)
  • Wireless Repeater    4
  • Multi Transmitter    6
  • PIR Cam    Supported
